Wireless Accelerometer (Online Vibration Monitoring Systems)
What is a Wireless Accelerometer?

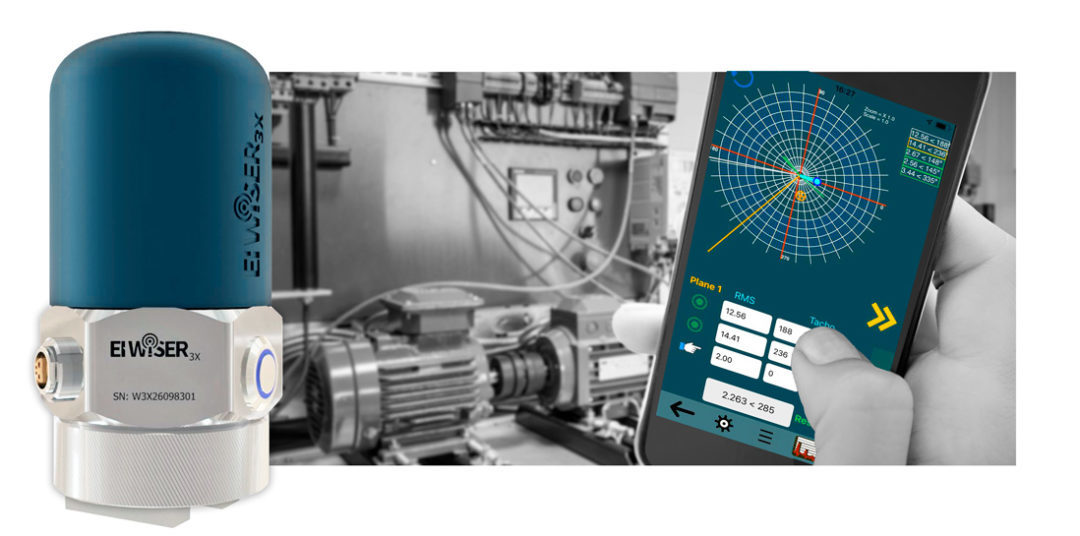

A Wireless Accelerometer is a device that converts motion or vibration into a voltage signal which is then transmitted to a receiver using a wireless protocol. Wireless accelerometers are used in industry to avoid the usage of cables which can be expensive or difficult to install. Our Triaxial Wireless Accelerometer is a vibration sensor specially designed for vibration analysis with universal compatibility. WiSER 3x is a wifi accelerometer that sends 3 axis vibration data + 1 additional channel simultaneously to any data collector in the market. Also, WiSER 3x is a wireless ultra-low noise accelerometer with 15 kHz bandwidth that exceeds the characteristics above all of most conventional accelerometers.
Real Time vibration streaming
Our 3 axis accelerometer sends data in real time with a maximum delay of 0.2 seconds. Thus, allowing resolutions of more than 1 million lines as well as recordings of several continuous hours.
A Wireless Accelerometer compatible with your Cellphone!
Use you cellphone as a Vibration Analyzer: Our triaxial wireless sensor is able to connect to iOS and Windows devices. You can make recordings and FFT analysis on 4 simultaneous channels with our vibration analysis app WiSER Vibe. Furthermore, connect your WiSER 3x directly via WiFi, it requires NO receiver!
Wireless Dynamic Balancing
Using our free app WiSER Balance or Digivibe for Windows, you can do dynamic balancing in situ. Perform multiplane balancing with WiSER 3x.
Just pair it and go, truly fast balancings!
- Just attach a laser sensor to your Wireless Accelerometer and pair it with your mobile phone for balancing. You will find that it is safer, more comfortable and of course, much faster. When you are done, share the files with your computer for reporting
Fast Data Collection Mode
WiSER 3x will measure Acceleration, Speed, Displacement and Envelope of acceleration in a single recording. No need for independent captures. The power button is also used to start or stop a capture. Thus, you will not lose time having to release the accelerometer every time you record a new point. This is especially useful when collecting routes.
Portable Wireless Accelerometer
Just place it and go! Take your wireless sensor, put it at the measuring point and then press button to start a measure. With this in mind you will get multiple measurements in just few minutes!
WiSER 3x Kit includes:
- Wireless Accelerometer Triaxial
- Magnetic base with 1/4-28 screw
- Battery Charger
- Li-ion Rechargeables Batteries
- Rugged Carrying Case
- Lase Tachometer (optional)
Multi-platform Wireless Accelerometer
All in just one place. Tablet, Laptop, or Mobile… You choose the partform. Use WiSER 3x with DigivibeMX software.
DigivibeMX allows users to complete analysis on all types of
rotating machinery with tools like:
- Time domain
- FFT Pointers
- CPM, Hz, Orders
- FRF & Bump Test
- AnalysisTransient Capture
- Acceleration Enveloping
- Compatible with any data collector device
- Full bandwidth 15kHz
- Sensitivity of 100 mV/g
- Long distance range up to 20m
- Stainless steel housing
- Operation temperature up to 185ºF (80ºC)
- Stand-by Mode
