Tri-axial Vibration Sensor

In stock

Description

Good vibration monitoring techniques require complete and accurate tri-axial accelerometers as well. Hence being able to send 3 simultaneous FFT and Time waveform recordings for all three axis at once. We have improved to the maximum the energy consumption resulting in life batteries up to 6 years. Additionally our wireless accelerometers can wake up on high vibration levels to send data and alarms.

As an additional value, all of our wireless accelerometers have a built-in integrator so they can, internally, calculate velocity parameters for alarms. This way, RMS values can be sent as well with a selectable periodicity.

Internal temperature is measured as well.

Specification

Meet Phantom Vibration Sensor:

  • 10kHz FMax
  • Full waveform and spectrum data
  • Programmable Internal RMS Trigger
  • Sample Rate: 25600 Hz
  • Lines of resolution: 6400
  • 3 years battery life
  • Internal temperature sensor

Temperature Sensor

All of our wireless sensors include temperature, however, we added wireless temperature sensors dedicated to measure extreme temperatures.

  • Wireless temperature sensor, Type K Thermocouple: range of -210° to 1800° C
  • Wireless temperature sensor, Contactless: -50° to 350° C

Wireless Amperage Sensor

Phantom includes non-invasive wireless current sensors to monitor power consumption from your electric motors. Moreover, each sensor includes 3 simultaneous channels to measure each of the 3 motor’s phases.

Our Amperage wireless sensor includes internal temperature as well.

Wireless RPM Sensor

We also created an RPM sensor for our vibration monitoring system. This sensor integrates your machine’s rotational speed to the overall analysis. As a result, you will be able to compare vibration, temperature and power consumption at different speeds.

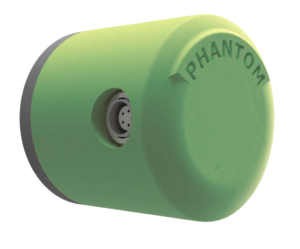

General-Purpose Wireless Sensor Adapter

Our General Purpose Wireless sensor adapters are able to monitor virtually any type of signal coming from your own devices, such as:

  • Displacement sensors
  • Pressure sensors
  • Speed sensors
  • Lubrication condition sensors

General Purpose Wireless sensor adapter comes with a LEMO connector with capability of up to 4 channels or 2 differential inputs. Inputs can measure 0 to 5 volts.

4-20 mA Wireless Sensor Adapter

As a variation we created a 4-20 mA Wireless sensors adapter. The 24-bit 4-20 mA Input interfaces with any sensor providing a 4-20 mA signal to implement your data into an integrated wireless system. This adapter features 4 channels non-switched battery-saving input that extends the life of the internal battery. It also offers digital filtering which improves measurement accuracy with 10 to 1024 readings/samples and 60 Hz noise rejection.

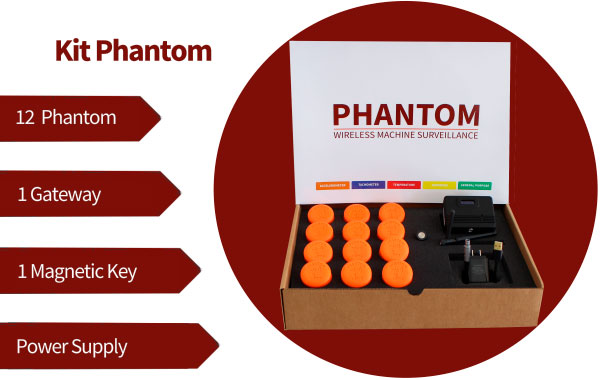

Kit Content

Our Vibration Monitoring system includes the most powerfull DigivibeMX  versión. You can choose between the next sensor:

  • Triaxial accelerometer 10kHz
  • Non-contact temperatur sensor
  • Temperature sensor Thermocouple K
  • Speed sensor (Hall effect)
  • Analog input sensor (2 channels)
  • 3 Phases current sensor (Includes 3 clamps 50A
