Soft Bearing Suspensions for Dynamic Balancing SBS-2000
The SBS-2000 allow you to create a balancer for large rotors up to 2000 kg. This balancing machine will allow you to perform balancing jobs in 2 planes as well as in a single plane and cantilever. Manufacture the bed for the desired length, this way you will not be limited in the size of the rotor.
- Minimum mass: 7 kg
- Maximum mass: 2000 kg
- Residual imbalance: 10 mg
- Speed: 450 – 3,000 RPM
- Type: Soft Bearing
Balance up to 2000kg with SBS-2000. High precision at a very low cost.
Features & Advantages

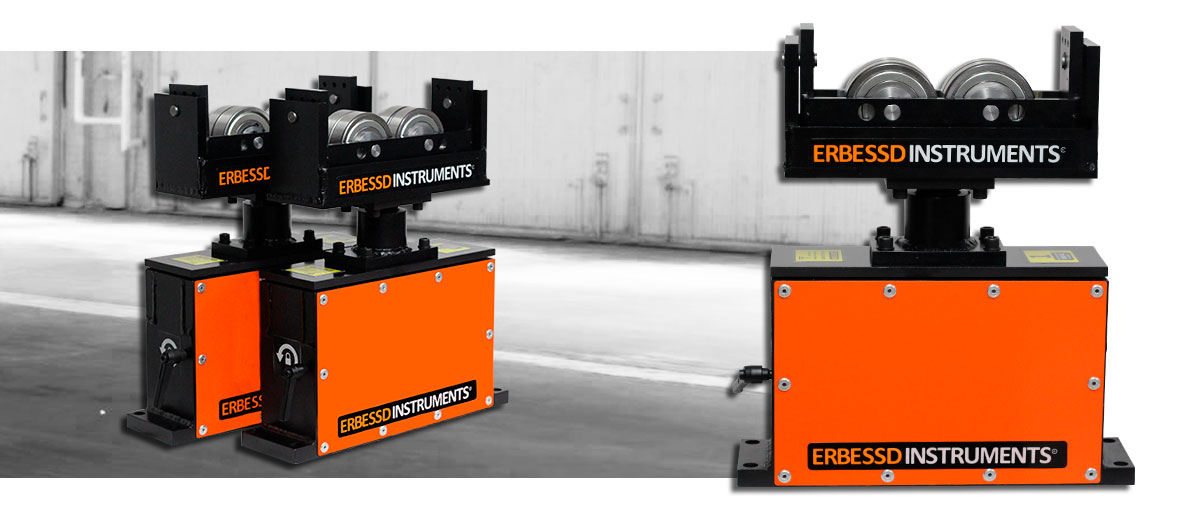

SBS-2000 is a balancing support kit intended to provide you a way to build your own balancing machine at a very low cost with very high performances.

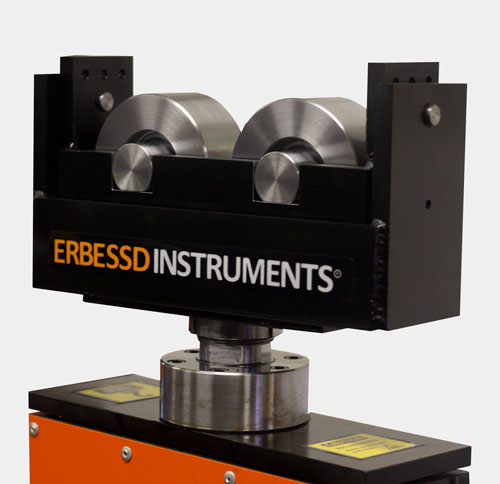

For a better contact between the shaft and the SBS-2000, the rolling elements have a swing system with a pitch up to 10 degrees, this way the SBS-2000 get aligned automatically with the shaft to prevent distortion on the shaft’s rolling superficies.
Between the roller’s work supports and the Soft Bearing Suspension, there is a lifting screw with ½ inch range to allow the rotor’s axis to be in horizontal position. This feature allows independency among planes for 2 plane balancing.

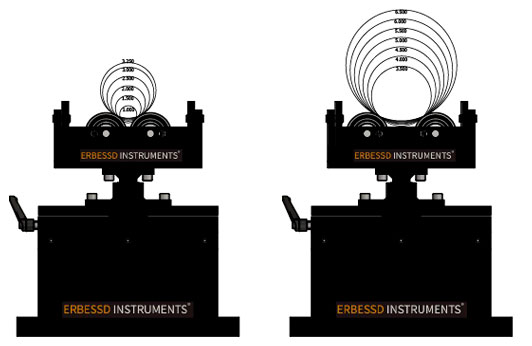

The SBS-2000 can support up to 2,000 kg (1,000 kg each support) and with its 2 roller positions they allow shaft diameters of 152 mm (6 in). They also have an elevator screw to adjust the position in case the rotor track supports have different diameters up to 25.4 mm (1 in).
